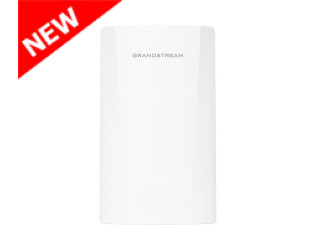

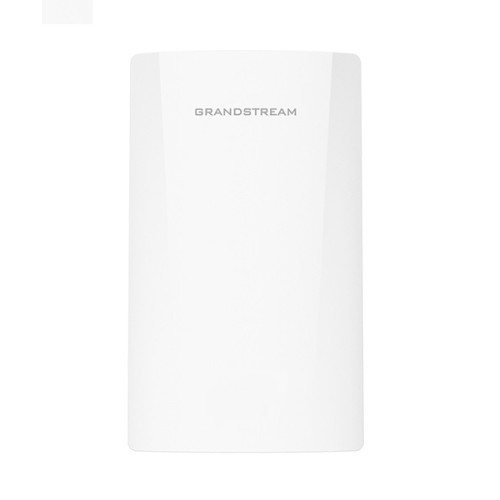

Grandstream GWN7605CLR Compact Outdoor 802.11ac, Wave-2 Wi-Fi Access Point with 2x GbE, 12-24V DC-In, PoE and IP66 weatherproof protection

Grandstream GWN7605CLR is an outdoor Wi-Fi access point with a Phoenix Connector that provides stable electrical connection, supports quick disassembly and installation, and is convenient for maintenance. Comes equipped with dual-band 2x2:2 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 150 meters. It offers IP66-level weatherproof capabilities to ensure equipment stability. It uses a controllerless distributed network management architecture in which the controller is embedded within the product’s Web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7605CLR is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on -premise Wi-Fi management platform. Powered by market-leading technology for advanced QoS, fast roaming, mesh networks, captive portals, support for 100+ concurrent clients and 2x1 Gigabit Ethernet ports with PoE+, the GWN7605CLR is an ideal Wi-Fi access point for low-latency jitter-sensitive real-time applications (such as voice/video-over-Wi-Fi devices & applications) in low-to-medium user density scenarios.

Key Features & Benefits:

• 1.27Gbps aggregate wireless throughput and 2x Gigabit ports
• Dual-band 2×2:2 MU-MIMO Wi-Fi 5 with beam-forming technology
• Self-power adaptation upon auto detection of PoE or PoE+
• Supports 12V-24V electrical power through the Phoenix Connector
• 100+ concurrent Wi-Fi client devices
• Up to 150-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown
• 2 internal antennas
• Embedded controller manages up to 50 local GWN APs
• GDMS Networking offers unlimited AP management
• GWN Manager offers on-premise software AP management
• 3 Year Warranty

Hardware Specifications:

Antennas:

• 2 dual band internal antennas
• 2.4GHz, gain 4.0dBi
• 5GHz, gain 4.0dBi

MIMO:

• 2.4GHz: 2x2:2, MIMO
• 5GHz: 2x2:2, MU-MIMO

Frequency Bands:

• 2.4GHz Radio: 2400 - 2483.5 MHz
• 5GHz Radio: 5150 - 5850 MHz

Channel Bandwidth:

• 2.4G: 20 and 40MHz
• 5G: 20, 40 and 80MHz

Wi-Fi Data Rates:

• IEEE 802.11ac: 6.5 Mbps to 867 Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• IEEE 802.11n: 6.5 Mbps to 300Mbps; 400 Mbps with 256-QAM on 2.4G
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Maximum TX Power:

• 2.4G: 24dBm
• 5G: 22dBm

Receiver Sensitivity:

• 2.4G:

802.11b: -96dBm @1Mbps, -88dBm @11Mbps
802.11g: -93dBm @6Mbps, -75dBm @54Mbps
802.11n 20MHz: -73dBm @MCS7
802.11n 40MHz: -70dBm @MCS7

• 5G:

802.11a: -92dBm @6Mbps, -74dBm @54Mbps
802.11ac 20MHz: -67dBm @MCS8
802.11ac 40MHz: -63dBm @MCS9
802.11ac 80MHz: -59dBm @MCS9

Coverage Range:

• Up to 150 meters

Interfaces:

Network Ports:

• 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input
• 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45
• LEDs: 1 tri-color LED for device tracking and status indication
• Auxiliary Ports: 1x Reset Pinhole

Power:

• PoE Input: 802.3af/at
• DC: PHOENIX CONNECTOR (12V-24V)
• Maximum Power Consumption: 10W

Software Specifications:

WLAN:

Wi-Fi Standards:

• IEEE 802.11 a/b/g/n/ac (Wave-2)

SSIDs:

• 16 SSIDs total, 8 per radio (2.4GHz & 5GHz)

Concurrent Clients:

• 100+

Basics:

Beamforming:

• OFDM
• 256-QAM
• Target wake time (TWT)
• Maximal Ratio Combining (MRC)
• Space-Time Block Coding (STBC)
• Low-density Parity-Check (LDPC)
• 802.11 Dynamic Frequency Selection (DFS)
• BSS coloring

SSID Hidden: Restrict access and improve wireless network security by SSID hiding
Port Aggregation: Multiple uplink ports for port aggregation to increase uplink bandwidth
Multicast/Broadcast Suppression: Multicast/Broadcast enable optimization with ARP proxy
Multicast Enhancement: Convert multicast data into unicast data for transmission
Bandwidth Limiting:  Support SSID/Client/MAC/IP-based rate limiting
Band Steering/Client Steering: Guide client to the frequency band with more abundant spectrum resources
RRM: Dynamically assign radio power, channel
VPN: L2TPv3
VLAN:

• Support interface/SSID/MAC binding VLAN based
• Management VLAN
• Dynamic VLAN

Time Policy:

• Track the time that the client connects to Wi-Fi,
• Support setting the amount of time for the client to connect to Wi-Fi and the reconnec type after a timeout
• Schedule: Support SSID, LED, Reboot schedule

WLAN Extension:

• Bridge: Supported
• Mesh: 2.4GHz, 5GHz, 2.4GHz&5GHz
• Hotspot: 2.0 Support
• Wireless Roaming:
• 802.11k, 802.11v, 802.11r
• Layer 2 roaming

Network:

• IPv4: Static or DHCP
• IPv6: Static or DHCP
• DHCP: Support server/client/relay
• NAT: NAT Pool
• LLDP: Link Layer Discovery Protocol, discovering and identifying other LLDP enabled devices and neighboring devices in the network

User Authentication:

• 802.1x authentication: Supported
• MAC authentication: Use client MAC address as the username and password for access control through the RADIUS server
• PPSK: PPSK with/without RADIUS
• Captive Portal: Supports radius/social login/vouchers/password/SAML SSO/active directory authentication

Security:

• Encryption:
• Open system
• OSEN
• WPA2-PSK (personal)
• WPA2-802.1x (enterprise)
• WPA3-SAE (personal)
• WPA3-802.1x (enterprise)
• WPA/WPA2, WPA2/WPA3
• Anti-hacking secure boot and critical data/control lockdown via digital signatures
• Unique security certificate and random default password per device
• Forwarding Security:
• MAC filtering
• Client isolation
• OS filtering

WIDS:

• Inbound/outbound traffic rules
• Rogue AP detection and containment
• ARP attack defense
• ND attack defense

Service Quality (QoS):

• 802.11e/WMM,802.1p, 802.1q, TOS

Management Platform:

• Local Web Embedded controller can manage up to 50 local GWN APs
• GDMS Networking A free cloud management platform for unlimited GWN APs
• GWN Manager premise-based software controller for up to 3,000 GWN APs
• GWN APP Integrate GDMS Networking and GWN Manager to manage GWN APs via the APP
• Management Protocol: TR-069, SNMP

Physical:

• Unit Dimensions: 180 × 107 × 45mm
• Unit Weight: 0.368Kg
• Entire Package Dimensions 219 × 185.5 × 66 mm
• Entire Package Weight: 0.695Kg
• Mounting: Outdoor metal bar mount or wall mount, kits included

Environmental:

• Operation Temperature: -30°C to 60°C
• Storage Temperature: -30°C to 70°C
• Operation Humidity 5% to 95% Non-condensing
• Protection Level: IP66-level weatherproof capability

Compliance:

• FCC, CE, RCM, IC

 PartnerNET Grandstream GWN7605CLR Wave 2 Outdoor WiFi Access Point Datasheet

Package Contents:

• GWN7605CLR Outdoor Wi-Fi Wireless AP
• 1x Wall/Pole Bracket
• 1x Device Bracket
• 1x Steel Strap
• 1x Terminal Power Adapter (12-24V input)
• 4x Expansion Bolts
• 4x Screws (M4×8)
• 2x Screws (M3×8)
• 4x Screws (PA3.5×33)
• 1x Adhesive Sticker
• 1x Rubber Waterproof Accessory
• Quick Installation Leaflet
