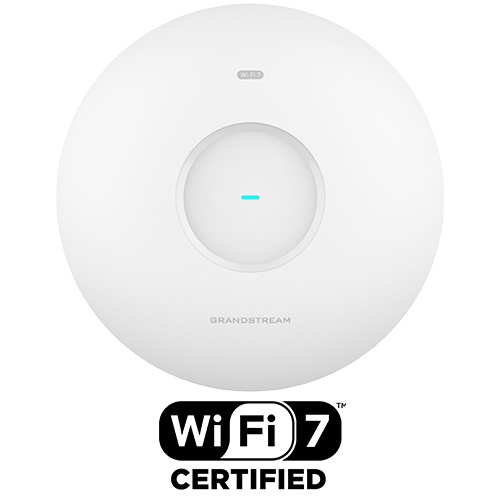

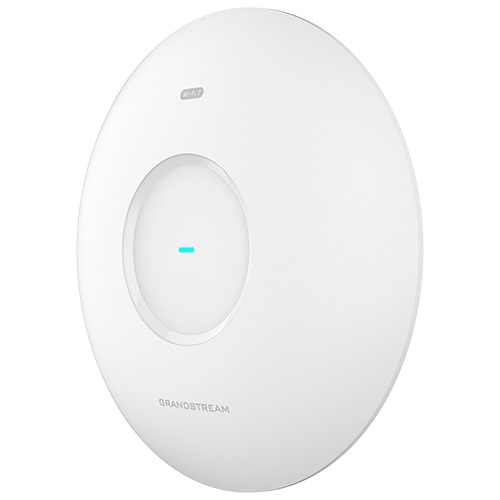

Grandstream GWN7670E Dual-Band Wi-Fi 7 BE3600 2×2:2/3×3:2 MU-MIMO Indoor Access Point with DL/UL OFDMA, Xtra Range 2.0 Technology and PoE+ Support

The GWN7670E is a powerful enterprise-grade Wi-Fi 7 BE3600 access point tailored for SMBs. Engineered with advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA technology, it delivers exceptional throughput and expansive coverage. Empowered by Xtra Range 2.0 technology on the 5 GHz band, this model shatters coverage barriers by dramatically boosting signal penetration for a seamless 360-degree connectivity. This model offers hybrid management flexibility through its local web UI or cloud-based platforms like GDMS Networking and GWN Manager. It is the ideal solution for medium-scale, high-density wireless environments.

Key Features & Benefits:

• 3.6Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughput
• Integrates Wi-Fi 7 Certified connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing

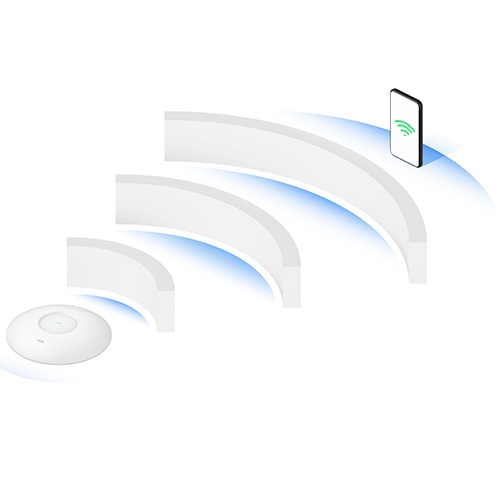

• Xtra Range 2.0 technology on the 5 GHz band enhances signal penetration and network coverage

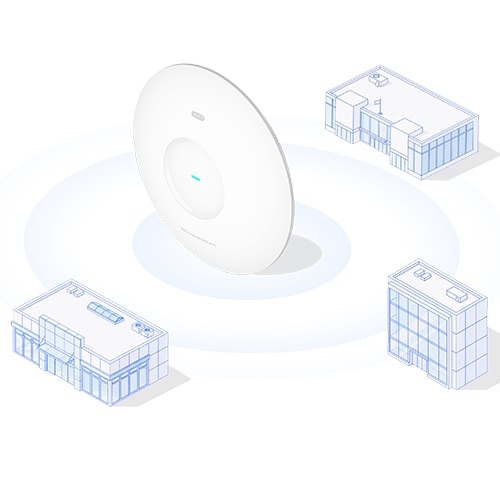

• Delivers reliable connectivity across a vast 175-meter coverage range
• Connects up to 512 Wi-Fi client devices simultaneously without compromising speed
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for comprehensive cloud and on-premises control
• 3 Year Warranty

 PartnerNET Grandstream GWN7670E Dual-Band Wi-Fi 7Access Point Datasheet

Specifications:

• Wi-Fi Standards: Wi-Fi 7 (IEEE 802.11a/b/g/n/ac/ax/be)
• SSIDs: 32 SSIDs in total, 16 per radio: 2.4 GHz & 5 GHz
• Client Capacity: Up to 512 concurrent clients

Antenna:

• 5 single-frequency antennas
• 2.4 GHz: 2 × 3.5 dBi
• 5 GHz: 3 × 5.5 dBi

MIMO:

• 2.4 GHz: 2×2:2, MU-MIMO
• 5 GHz: 3×3:2, MU-MIMO

Frequency Bands:

• 2.4 GHz Radio: 2,400–2,483.5 MHz
• 5 GHz Radio: 5,150–5,895 MHz

Channel Bandwidth:

• 2.4 GHz: 20 and 40 MHz
• 5 GHz: 20, 40, 80 and 160 MHz

Wi-Fi Data Rates:

• 2.4 GHz:

IEEE 802.11be: Up to 688 Mbps
IEEE 802.11ax: 7.3 Mbps to 574 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps

• 5 GHz:

IEEE 802.11be: Up to 2,882 Mbps
IEEE 802.11ax: 7.3 Mbps to 2,402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1,732 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Maximum TX Power

• 2.4 GHz: 26.5 dBm
• 5 GHz: 25 dBm

Coverage Range:

• Up to 175 m

Interface:

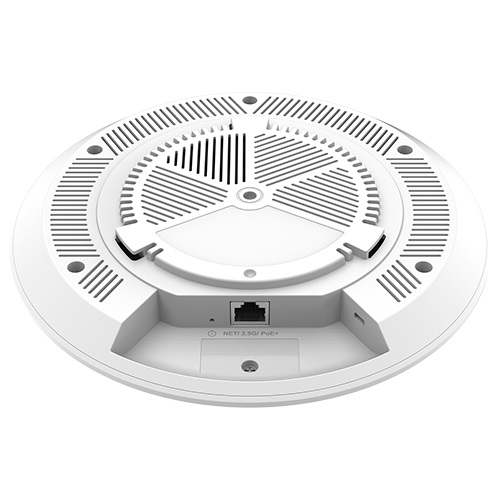

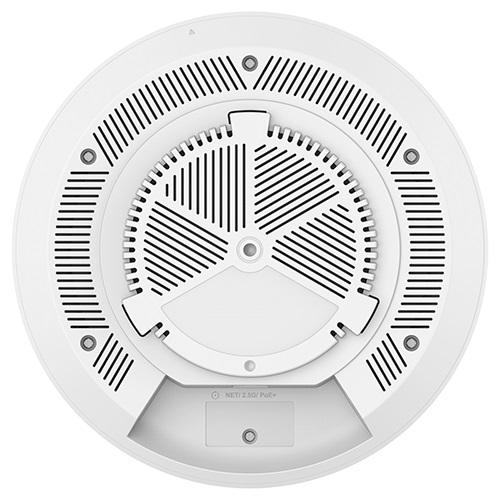

• Network Ports: 1× 2.5 GbE RJ45 port (Supports PoE Input)
• Other Ports: 1× Reset Pinhole, 1× Kensington Lock

System LED:

• 1 tri-color LED for device tracking and status indication

Power and Energy:

• PoE Standards: 802.3at
• Max Power Consumption: 16 W

Advanced Wireless Features:

• Beamforming
• OFDMA
• Multi-RU
• Preamble Puncturing
• 4096-QAM
• Multilink Operation (MLO)
• Target Wake Time (TWT)
• Maximal Ratio Combining (MRC)
• Space-Time Block Coding (STBC)
• Low-Density Parity-Check (LDPC)
• 802.11 Dynamic Frequency Selection (DFS)
• BSS Coloring

SSID Hidden: Restricts access and enhances network privacy by hiding the SSID
Multicast/Broadcast Suppression: Yes
Multicast Enhancement: Converts multicast data into unicast data for transmission
Bandwidth Limiting: Supports rate limiting based on SSID, Client, MAC, or IP address
Band Steering, Client Steering
RRM: Dynamic assignment of radio power and channels
VPN: L2TPv3

VLAN:

• Supports VLAN binding based on Interface, SSID, or MAC address
• Supports Management VLAN and Dynamic VLAN

Time Policy:

• Tracks the time that the client connects to Wi-Fi
• Supports setting the amount of time for the client to connect to Wi-Fi and the reconnection type after a timeout

Schedule: Supports SSID, LED, and Reboot scheduling

WLAN Extension:

• Bridge
• Extender
• Mesh: 2.4 GHz, 2.4 GHz & 5 GHz, 5 GHz
• Hotspot 2.0
• Wireless Roaming:
• 802.11k, 802.11v, 802.11r
• Layer 2 roaming

Network:

• IPv4: Static IP or DHCP assignment
• IPv6: Static IP or DHCP assignment
• DHCP: Supports Server, Client, and Relay modes
• NAT: NAT Pool
• LLDP: Link Layer Discovery Protocol for automated device identification

User Authentication:

• 802.1x Authentication
• MAC Authentication: RADIUS-based access control using client MAC addresses as credentials
• PPSK: PPSK with or without RADIUS, Easy PSK
• Captive Portal: Supports RADIUS, Social Login, Vouchers, Password, SAML SSO, and Active Directory authentication

Security and Maintenance:

Encryption:

• Open System
• OSEN
• WPA2-PSK (Personal)
• WPA2-802.1x (Enterprise)
• WPA3-SAE (Personal)
• WPA3-802.1x (Enterprise)
• WPA3-OWE (Enhanced Open)
• WPA/WPA2, WPA2/WPA3
• Unique Security Certificate and Random Default Password per Device

Firmware Security:

• Anti-Hacking Secure Boot
• Critical Data and Control Lockdown via Digital Signatures

Forwarding Security:

• MAC Filtering
• Client Isolation
• OS Filtering

WIDS:

• Inbound/Outbound Traffic Rules
• Rogue AP Detection and Containment
• ARP Attack Defense
• ND Attack Defense

Management Protocol:

• TR-069
• SNMP

Service Quality: QoS 802.11e/WMM, 802.1p, 802.1q, TOS

Management Platform:

• Local Management:
  - Local Web UI: Embedded controller which can manage up to 50 local GWN APs
• Cloud Management:
  - GDMS Networking: A free cloud management platform for unlimited GWN APs
  - GWN Manager: Premise-based software controller for up to 3,000 GWN APs
  - GWN App: Integrates GDMS Networking and GWN Manager to manage GWN APs via the app

Environmental:

• Operating Temperature: 0 °C to 45 °C
• Storage Temperature: -30 °C to 60 °C
• Humidity: 10% - 90%, non-condensing

Compliance: FCC, CE, RCM, IC

Dimensions & Weights:

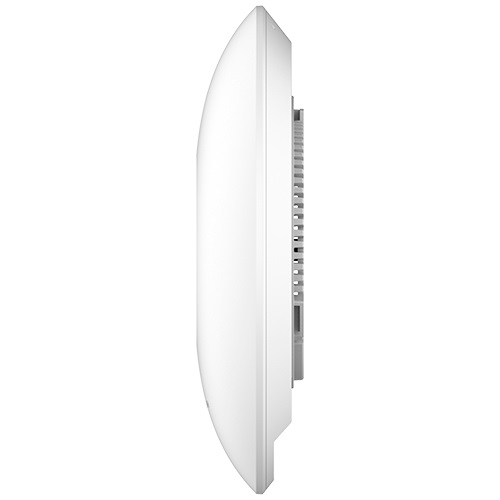

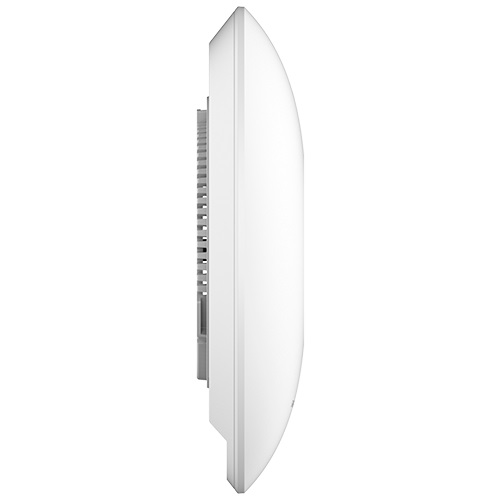

• Unit Dimensions: Ø220 × 48.5 mm
• Package Dimensions: 275 × 266 × 76 mm
• Unit Weight: 0.546 kg
• Package Weight: 0.993 kg
• Installation Methods: Indoor Wall Mount, Ceiling Mount, and Junction Box Mount

Package Contents:

• GWN7670E Wi-Fi 7 Wireless AP
• 1× Mounting Bracket
• 1× Ceiling Mounting Bracket
• 3× Plastic Expansions Bolts
• 3× Pan Head Tapping Screws (ST3.5 × 20 mm)
• 3× Pan Head Machine Screws (M3 × 50 mm)
• 3× M3 Nuts
• Quick Installation Guide
• Regulatory Paper
