MAXHUB XT10-WS Kit for Microsoft Teams Rooms, includes 1x XC13T Mini-PC, 1x TCP20T Touch Control Panel, 1x UC BM35 Wireless Speakerphone and 1x UC W31 USB Camera

MAXHUB XT10-WS Kit incorporates a high-quality Speakerphone and USB Camera. With the inclusion of a mobile Speakerphone and camera, this bundle adeptly caters to participants’ dynamic audio and video needs, driving a flexible and seamless collaboration experience. Compatible with Microsoft Teams Rooms, the Kit also helps to facilitate the switch to Microsoft Teams Rooms smart spaces for BYOD scenarios, enhancing Teams-native audio and video experiences while accommodating cost-balance needs.

Key Features & Benefits:

• One Cable Technology
• Device Management
• Flexible & Ease of Installation
• Easy Content Sharing
• Secured and Managed

XC13T Mini-PC Specifications:

• CPU: Intel i3-1220P TDP: 28W
• Memory: 8GB DDR4 3200MHz
• Optional hard disk: 128GB SATA SSD (M.2-2280 SATA3 up to 6Gb/s)
• Graphics: Intel® UHD Graphics for 12th Gen Intel® Processors
• Chipset: ADL PCH-P
• Sound Card: USB Audio, HS-100B, Cmedia
• Network: 1000Mbps RJ45
• Operating system: Windows 11 IoT Enterprise SAC
• Certification: Microsoft Teams Rooms

I/O Port:

• 4x USB-A 3.0
• 1x LAN
• 1x USB-C (For Teams Rooms Console)
• 1x HDMI OUT
• 1x Audio OUT
• 1x AC POWER
• 1x Kensington lock slot

Power:

• Power Supply Mode: AC POWER
• Power Requirements: 100-240V AC 50/60Hz
• Max Power: 90W

Accessories included in the package:

• 1x Wall Bracket
• 1x PC Bracket
• 2x Cable Cover Screw
• 4x Machine Screw
• 4x Expansion Screw
• 4x Self-tapping Screw
• 1x Cable Cover
• 1x HDMI Cable (1.8m/5.9ft)
• 1x Power Cord (1.8m/5.9ft)
• 1x Quick Start Guide

Physical Specifications:

• Unit Dimensions (L×W×H): 230 × 185 × 41.5mm
• Net Weight: 1.36kg
• Package Dimensions (L×W×H): 342 × 246 × 146mm
• Gross Weight: 4.36kg

Environmental:

• Operation Temperature: 0°C-40°C
• Operation Humidity: 10%-90%RH
• Storage Temperature: -20°C-60°C
• Storage Humidity: 10%-90%RH
• Altitude: Below 5000m

TCP20T Touch Control Panel Specifications:

• 10.1" Display
• Type: Capacitive touch, 10 points touch
• Touch Tool: Finger
• Accuracy: ± 2mm / 0.08"
• Minimum object size 6mm / 0.24"
• Resolution: 1920(H) x 1200(V)
• Frequency Refresh Rate: 60Hz
• NTSC: Min.62%, Typ.65%
• Back Light Unit: ELED
• Brightness with glass: Min.250cd/m², Typ.300cd/m²
• Life Time: ≥ 20000 Hours

I/O Port:

• 1x HDMI In (Screen Share)
• 1x USB-A (USB Peripheral)
• 1x USB-C (to PC)
• 1x 3.5mm (Audio Out)

Power:

• Power Requirements: 15V 3A (Type-C PD)
• Overall Power (Max.): 20W
• Standby Power: ≤ 0.5W

Accessories included in the package:

• 1x USB Type-C Cable (Type C-C) 5m / 16.4ft
• 1x HDMI Cable 1.8m / 5.9ft
• 1x Quick Start Guide

Physical Specifications:

• Unit Dimensions (L×H×D): 245 × 164.3 × 77.4mm
• Net Weight: 880g
• Package Dimensions (L×W×H): 332 × 246 × 166mm
• Gross Weight: 2.38kg

Environmental:

• Operation Temperature: 0°C-40°C
• Operation Humidity: 10%-90%RH
• Storage Temperature: -20°C-60°C
• Storage Humidity: 10%-90%RH
• Altitude: Below 5000m

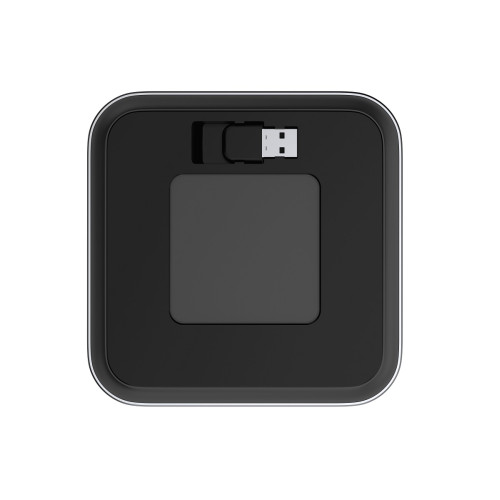

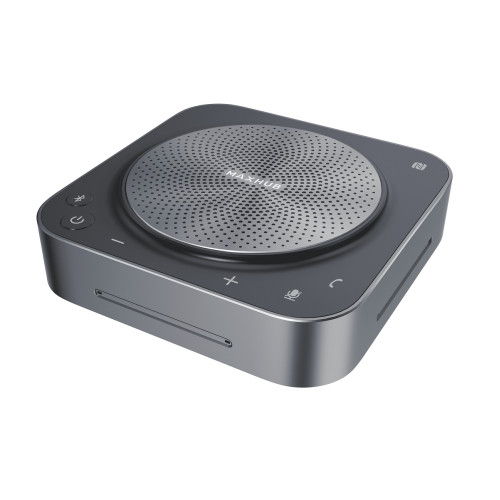

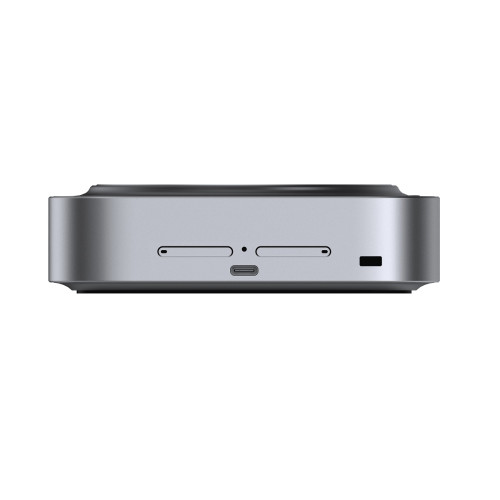

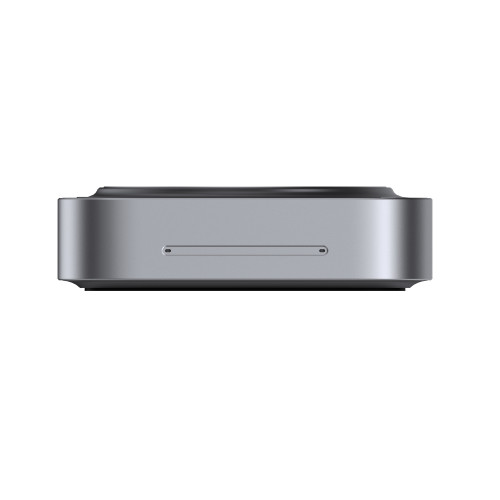

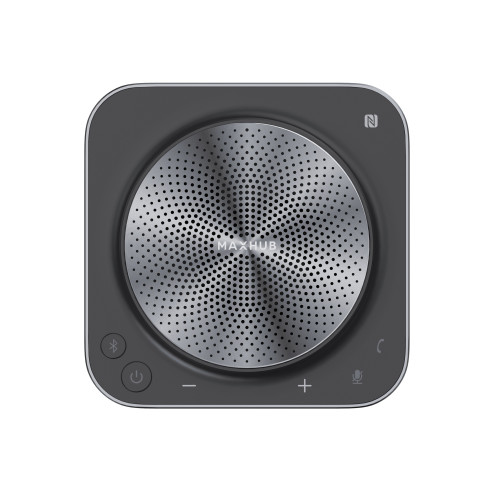

UC BM35 Speakerphone Specifications:

• 8-microphone Array
• 6m Voice pick-up range
• 5W + 3W Speakers
• Includes USB Dongle
• Dual Bluetooth Module BT5.3
• Expandable, Daisy Chain (by Bluetooth)
• 3.7V/4400mAh Lithium-ion Battery
• 15 hours battery capacity for conversation, 8 hours for music playing
• USB Type-C Interface
• LED Indicator, physical buttons & touch buttons

Physical:

• Unit Dimention (LxWxH): 126.7 x 126.7 x 35.3mm
• Net Weight: 0.47kg
• Package Dimension (LxWxH): 225 × 158 × 50mm
• Gross Weight: 0.71kg

Environmental:

• Operating Temperature: 0°C~40°C
• Operating Humidity: 10%~90%RH
• Storage Temperature: -20°C~60°C
• Storage Humidity: 10%~90%
• Operating Altitude: below 5000 meters

Accessories included in the package:

• 1x USB Dongle
• 1x USB Cable (1m)

UC W31 4K USB Camera Specifications:

• Advanced 1/2.3” 12MP SONY IMX 577 sensor with natural colour reproduction
• 120° wide angle 4K lens with 5x Digital Zoom
• 4K UHD Resolution
• Built-in intelligent framing technology to keep participants in view
• Dedicated LED light indicator for camera activity
• Wall or Screen-top mountable
• Microsoft Teams Rooms Certified

Camera Parameters:

• Image Sensor: IMX 577 1/2.3” 12MP
• Output Resolution:
• H.264 (30fps)/MJ(25fps), 3840*2160, 2560*1440, 1920*1080, 1280*720, 1024*576, 960*540, 800*600, 640*480, 640*360, 480*270, 352*288, 320*240
• YUY2 (30fps), 640*480, 640*360, 480*270, 352*288, 320*240
• Focus Method: Fixed
• Field Of View: FOV(H): 109.1° / FOV(V): 74.4° / FOV(D): 117.8°
• Touch Point: 2.4
• Digital Noise Reduction
• Camera pan/tilt: Electronic PTZ
• Output Format: MJPG, H.264, YUY2, NV12
• White Balance / Exposure: Auto

Microphone Parameters:

• Quantity: 2
• Pickup Distance: 4m

I/O Port:

• 1x USB Type-C (Device)

Physical Specifications:

• Unit Dimension (L×H×D): 85 × 63 × 68mm
• Net Weight: 175g
• Package Dimension (LxWxH): 160 × 144 × 114mm
• Gross Weight: 300g

Environmental:

• Operating Temperature: 0°C~40°C
• Operating Humidity: 10%~90%RH
• Storage Temperature: -20°C~60°C
• Storage Humidity: 10%~90%
• Operating Altitude: below 5000 meters

Accessories included in the package:

• 1x Camera Lens Cover
• 1x Hand-tightened screw
• 1x USB Type C-A Cable (1.8m)
• 1x Quick Start Guide

Entire Package Details of the MAXHUB XT10-WS Kit:

• XC13T Mini-PC x1
• TCP20T Touch Control Panel x1
• UC BM35 x1
• UC M31 x1
• Package Dimensions (L×W×H): 890 x 270 x 265mm
• Net Weight: 8.03kg
• Gross Weight: 9.91kg
